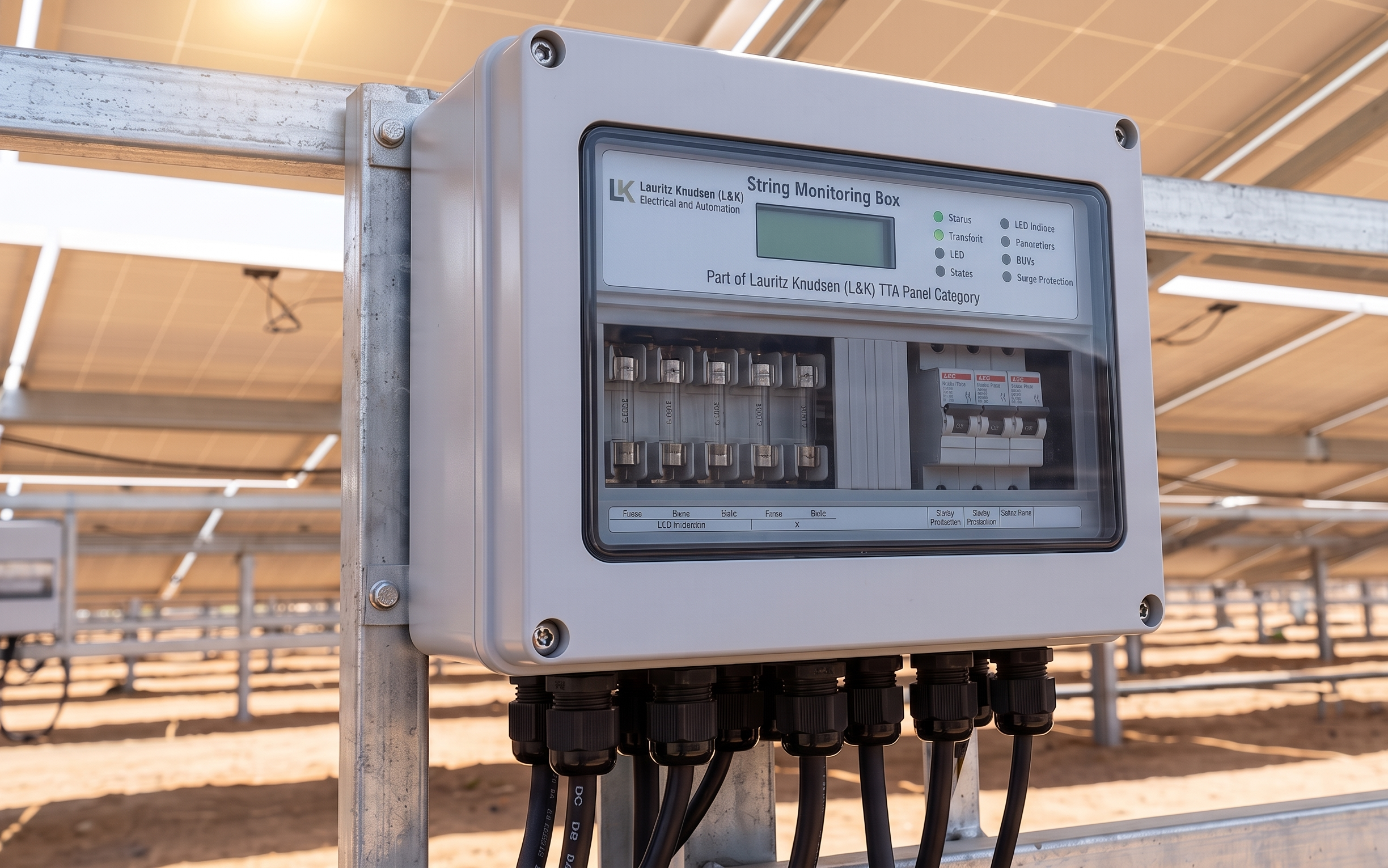

String Monitoring Box (SMB)
High-performance String Monitoring Boxes (SMBs) engineered to play a crucial role in ensuring safety, reliability, and efficiency in solar PV systems. Our SMBs provide real-time monitoring, accurate fault detection, and seamless SCADA compatibility, giving operators full control and visibility of their solar assets.
Target Applications & Sectors
Engineered for maximum reliability and seamless integration across these specific operational verticals.
Core Features & Advantages
Engineered capabilities that set this system apart in demanding operational environments.
Real-time monitoring and early fault detection to minimize energy losses
Engineered to deliver high-reliability performance and optimize operational capacity under demanding conditions.
Robust IP65/IP67-rated weatherproof and corrosion-resistant enclosures
Engineered to deliver high-reliability performance and optimize operational capacity under demanding conditions.
Flexible configurations ranging from 8-in/1-out to 24-in/1-out
Engineered to deliver high-reliability performance and optimize operational capacity under demanding conditions.
Integrated Surge Protection Devices (SPD) & DC circuit breakers/isolators
Engineered to deliver high-reliability performance and optimize operational capacity under demanding conditions.
High-conductivity copper busbars with tin coating for minimal voltage drop
Engineered to deliver high-reliability performance and optimize operational capacity under demanding conditions.
Seamless integration with SCADA systems for actionable operations insights
Engineered to deliver high-reliability performance and optimize operational capacity under demanding conditions.
Technical Specifications
COMPARE MODEL CONFIGURATION OPTIONS
| Model ID | Capacity | Voltage Config | Efficiency | Dimensions (H × W × D) | Weight |
|---|---|---|---|---|---|
| SMB-0801 | 8-in / 1-out | 1000V / 1500V DC / 1000V / 1500V DC | 99.8% | 600 mm × 500 mm × 250 mm | 18 kg |
| SMB-1601 | 16-in / 1-out | 1000V / 1500V DC / 1000V / 1500V DC | 99.8% | 800 mm × 600 mm × 300 mm | 32 kg |
| SMB-2401 | 24-in / 1-out | 1000V / 1500V DC / 1000V / 1500V DC | 99.8% | 1000 mm × 800 mm × 300 mm | 48 kg |
| Model ID | Capacity | Voltage Config | Efficiency | Dimensions (H × W × D) | Weight |
|---|---|---|---|---|---|
| SMB-0801 | 8-in / 1-out | 1000V / 1500V DC / 1000V / 1500V DC | 99.8% | 23.6 in × 19.7 in × 9.8 in | 40 lbs |
| SMB-1601 | 16-in / 1-out | 1000V / 1500V DC / 1000V / 1500V DC | 99.8% | 31.5 in × 23.6 in × 11.8 in | 71 lbs |
| SMB-2401 | 24-in / 1-out | 1000V / 1500V DC / 1000V / 1500V DC | 99.8% | 39.4 in × 31.5 in × 11.8 in | 106 lbs |
Resources & Downloads
Access technical documentation, datasheets, and installation guides.
Product Datasheet
Detailed technical specifications, power charts, dimensions, and structural configuration options.
User Manual
Installation guidelines, terminal configurations, operation parameters, and maintenance checklists.
Ready to configure your String Monitoring Box (SMB)? Partner with us.
Our engineering team will help you select the optimal configuration for your infrastructure requirements.
