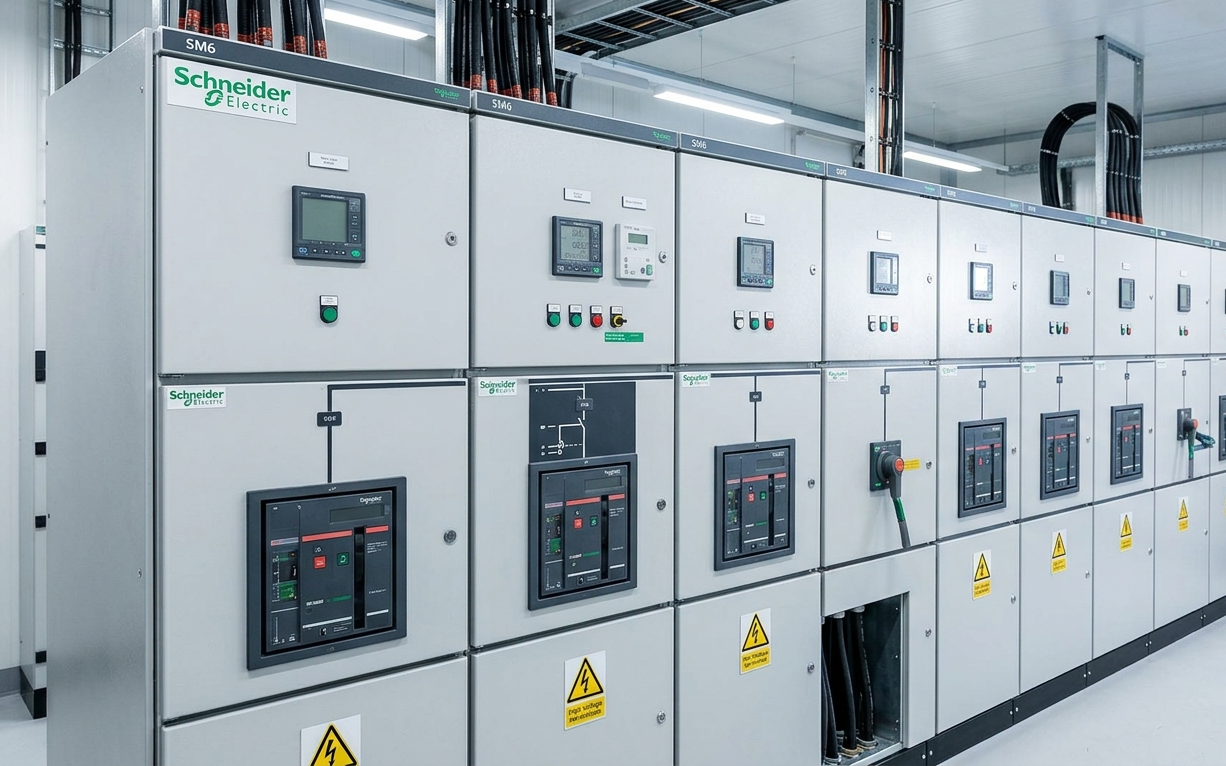

HT Panel (HWX / HVX Series) — Indoor & Outdoor
Arihantaa Powertech is a dedicated supplier of Schneider Electric HT switchgear, available in both indoor and outdoor
configurations and type tested up to 40kA. At 4000A, we supply the Schneider HWX platform naturally air-cooled
with no forced cooling required, even at 45°C ambient.
Target Applications & Sectors
Engineered for maximum reliability and seamless integration across these specific operational verticals.
Core Features & Advantages
Engineered capabilities that set this system apart in demanding operational environments.
40kA Type Tested
Type tested up to 40kA for short-circuit performance and Internal Arc Classification, supporting reliable protection in demanding HT applications.
Up to 4000A Current Rating
Schneider HWX platform available up to 4000A, with natural air cooling and no forced cooling required at 45°C ambient.
Indoor & Outdoor Configurations
Available in both indoor and outdoor configurations for substations, industrial facilities, switchyards and infrastructure projects.
Vacuum Interruption Technology
Vacuum interruption technology provides reliable switching, low maintenance requirements and high mechanical endurance.
IEC 62271 Compliant
Designed in accordance with IEC 62271-1, IEC 62271-100 and IEC 62271-200 for HT switchgear and high-voltage equipment applications.
Technical Specifications
COMPARE MODEL CONFIGURATION OPTIONS
| Model ID | Capacity | Voltage Config | Efficiency | Dimensions (H × W × D) | Weight |
|---|---|---|---|---|---|
| HWX | Up to 4000A | Up to 12kV / Up to 12kV | Indoor / Outdoor | Model-specific | Model-specific |
| HVX | Up to 4000A | 12kV / 17.5kV | Indoor | Model-specific | Model-specific |
| Model ID | Capacity | Voltage Config | Efficiency | Dimensions (H × W × D) | Weight |
|---|---|---|---|---|---|
| HWX | Up to 4000A | Up to 12kV / Up to 12kV | Indoor / Outdoor | Model-specific | Model-specific |
| HVX | Up to 4000A | 12kV / 17.5kV | Indoor | Model-specific | Model-specific |
Resources & Downloads
Access technical documentation, datasheets, and installation guides.
Product Datasheet
Detailed technical specifications, power charts, dimensions, and structural configuration options.
User Manual
Installation guidelines, terminal configurations, operation parameters, and maintenance checklists.
Need Schneider Electric HT Panels for Your Project? Partner with us.
Our engineering team will help you select the optimal configuration for your infrastructure requirements.
