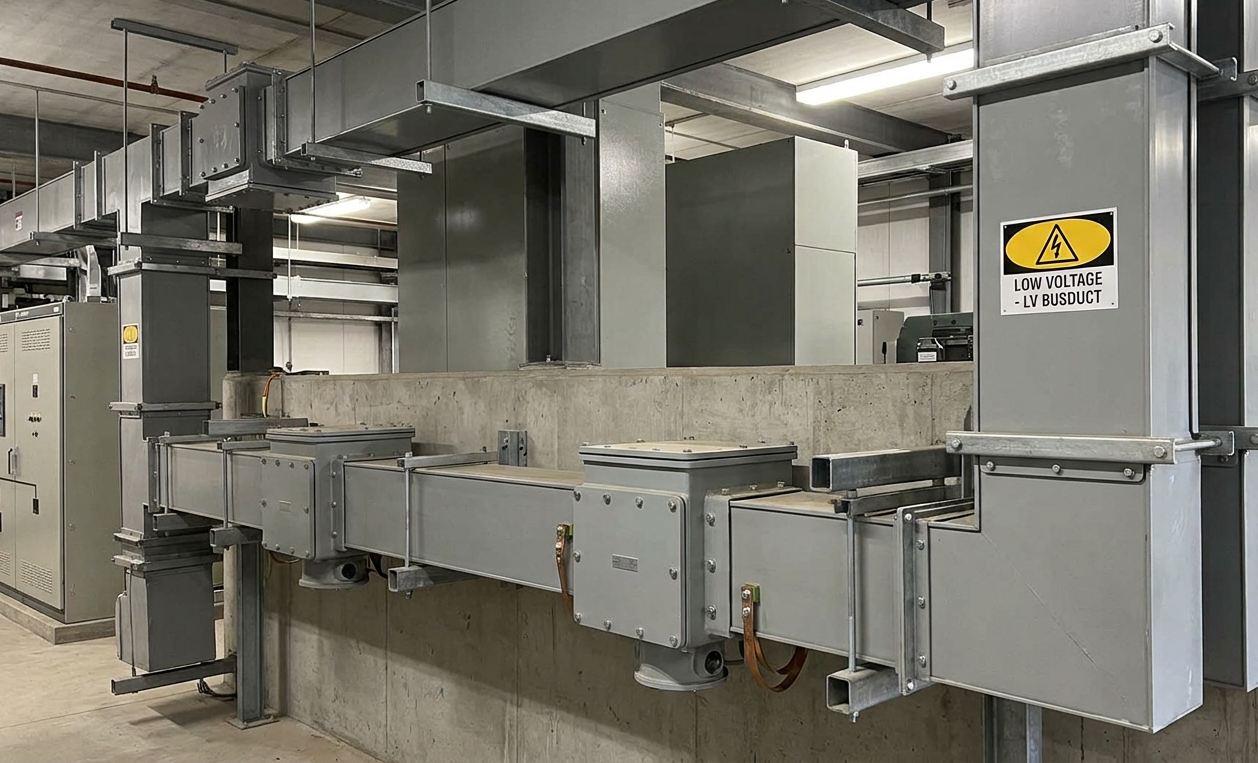

Air Insulated LV Busduct
415V to 1.1kV, 1kA to 7kA. FRP/SMC/Epoxy insulator supports. 3Ph 3-wire or 3Ph 4-wire.
Target Applications & Sectors
Engineered for maximum reliability and seamless integration across these specific operational verticals.
Core Features & Advantages
Engineered capabilities that set this system apart in demanding operational environments.
415V to 1.1kV air-insulated LV
Air insulated LV design from 415V to 1.1kV.
1kA to 7kA current range
Current ratings from 1kA to 7kA for plant distribution.
FRP / SMC / Epoxy supports
FRP/SMC/Epoxy insulator supports for reliable spacing and dielectric strength.
3Ph 3-wire or 3Ph 4-wire
Available in 3Ph 3-wire or 3Ph 4-wire configuration.
CPRI, ASTA and ERDA certified
CPRI certified, ASTA certified, ERDA type-tested.
Technical Specifications
COMPARE MODEL CONFIGURATION OPTIONS
| Model ID | Capacity | Voltage Config | Efficiency | Dimensions (H × W × D) | Weight |
|---|---|---|---|---|---|
| 3Ph 3-wire | 1kA to 7kA | 415V to 1.1kV / 415V to 1.1kV | Air insulated | N/A × N/A × N/A | Project specific |
| 3Ph 4-wire | 1kA to 7kA | 415V to 1.1kV / 415V to 1.1kV | Air insulated | N/A × N/A × N/A | Project specific |
| Model ID | Capacity | Voltage Config | Efficiency | Dimensions (H × W × D) | Weight |
|---|---|---|---|---|---|
| 3Ph 3-wire | 1kA to 7kA | 415V to 1.1kV / 415V to 1.1kV | Air insulated | N/A × N/A × N/A | Project specific |
| 3Ph 4-wire | 1kA to 7kA | 415V to 1.1kV / 415V to 1.1kV | Air insulated | N/A × N/A × N/A | Project specific |
Resources & Downloads
Access technical documentation, datasheets, and installation guides.
Product Datasheet
Detailed technical specifications, power charts, dimensions, and structural configuration options.
User Manual
Installation guidelines, terminal configurations, operation parameters, and maintenance checklists.
Need Air Insulated LV Busduct for your project? Partner with us.
Our engineering team will help you select the optimal configuration for your infrastructure requirements.
